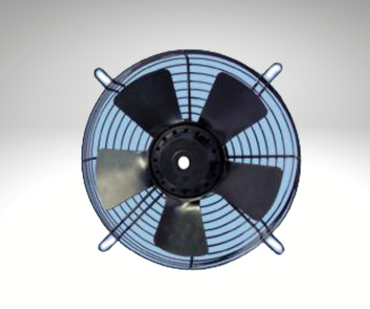

Axial Flow Fans - 350 to 450 mm
Axial Flow Fans have one-piece construction Blades up to 350 mm sweep and 5 nos. independent Blades riveted/bolted on a Fan Hub for Fans above 350 mm sweep. The Blade is press fitted on the Rotor and the assembly is dynamically balanced in two planes to grade 2.5 of ISO 1940. Various accessories such as Round Housing, conventional Exhaust Frames and a variety of Grills and brackets are available to mount the Fan to suit individual needs. Temperature rise tests taken at the manufacturing stage ensure fail-proof running throughout its life.
Salient Features :

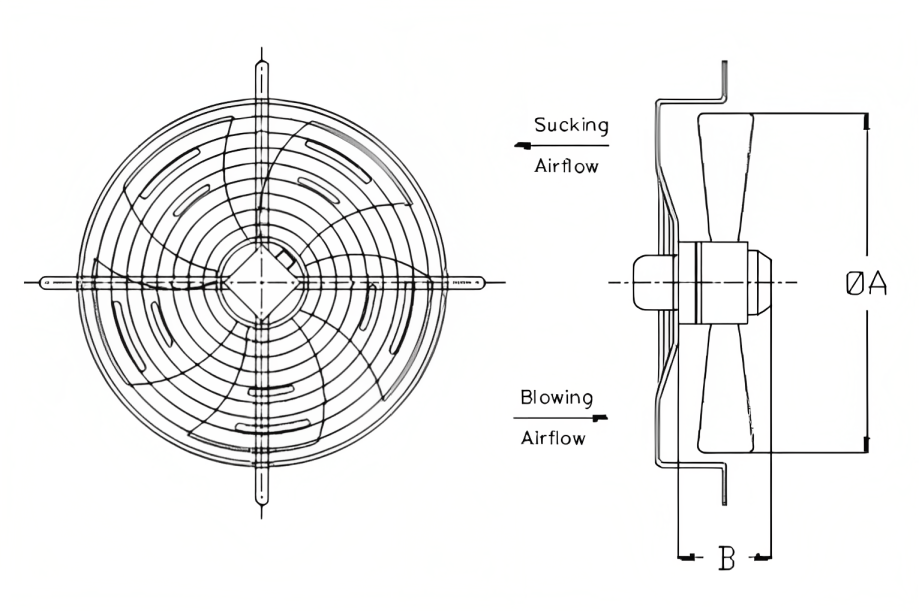

| Sr. No. | Model | Dimm. (MM) | Volt (V) | Watts (W) | Current (A) | Speed (rpm) | Capacitor (uF) | Air Volume (m3 / hr) | Noise (dBA) | Net Weight (Kg.) | |
| A | B | ||||||||||
| 1 | FA23/350-14/K2 | 350 | 105 | 230 | 123 | 0.49 | 1400 | 4.00 | 2300 | 66 | 4.8 |
| 2 | FA44/350-14/K2 | 350 | 105 | 415 | 134 | 0.38 | 1400 | --- | 2350 | 66 | 4.8 |
| 3 | FA23/400-14/K3 | 400 | 110 | 230 | 155 | 0.66 | 1350 | 5.00 | 3250 | 70 | 5.6 |
| 4 | FA44/400-14/K3 | 400 | 110 | 415 | 169 | 0.43 | 1400 | --- | 3350 | 70 | 5.6 |
| 5 | FA23/450-14/K4 | 450 | 120 | 230 | 272 | 1.14 | 1350 | 6.00 | 4525 | 72 | 6.9 |
| 6 | FA44/450-14/K4 | 450 | 120 | 415 | 249 | 0.47 | 1350 | --- | 4575 | 72 | 6.9 |
