External Rotor Motors - 110 mm
Salient Features :
-
Salient Features :
CE Mark and manufactured to EN 60335-1
Compact in size.
Continuous Rating with High Efficiency.
Variable Speed by changing Input Voltage or Frequency.
Dynamically Balanced in 2 planes as per grade 2.5 of ISO 1940-1973 in accordance with VDI 2060.
Winding Surge and H.V. Tested.
Double Shielded pre lubricated Ball Bearings.

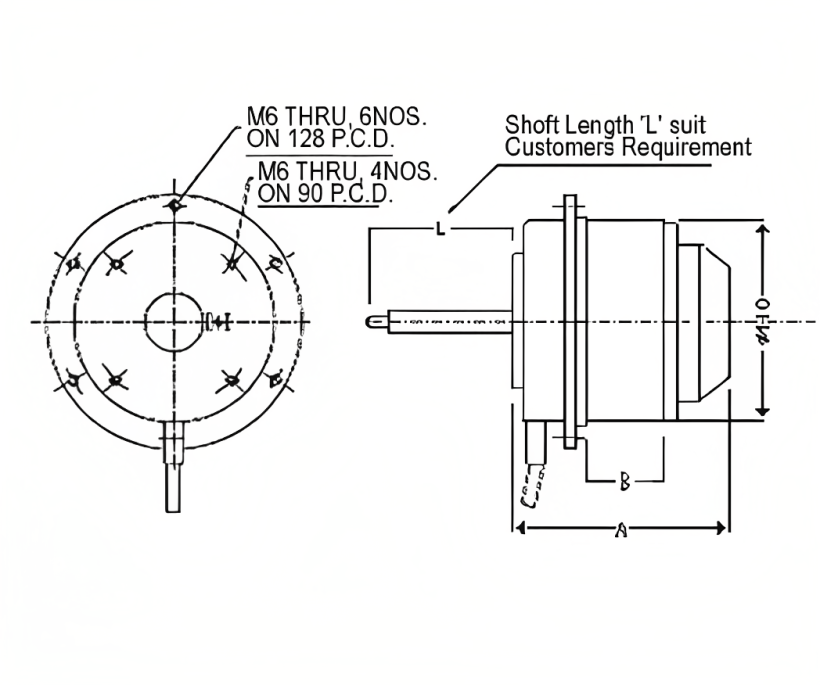

| Sr. No. | Model | Dimm. (MM) | Volt (V) | Watts (W) | Current (A) | Speed (rpm) | Capacitor (uF) | Air Volume (m3 / hr) | Noise (dBA) | Net Weight (Kg.) | |
| A | B | ||||||||||
| 1 | MO23/110-14/K2 | 30 | 105 | 230 | 130 | 0.60 | 1400 | 4.00 | ---- | 49 | 2.8 |
| 2 | MO44/110-14/K2 | 30 | 105 | 415 | 130 | 0.40 | 1400 | ---- | ---- | 49 | 2.8 |
| 3 | MO23/110-28/K2 | 30 | 105 | 230 | 160 | 0.74 | 2800 | 4.00 | ---- | 52 | 2.8 |
| 4 | MO44/110-28/K2 | 30 | 105 | 415 | 175 | 0.50 | 2800 | ---- | ---- | 52 | 2.8 |
| 5 | MO23/110-14/K3 | 35 | 110 | 230 | 160 | 0.73 | 1400 | 4.0 | ---- | 49 | 3.0 |
| 6 | MO44/110-14/K3 | 35 | 110 | 415 | 170 | 0.51 | 1400 | ---- | ---- | 49 | 3.0 |
| 7 | MO23/110-28/K3 | 35 | 110 | 230 | 170 | 0.78 | 2800 | 4.0 | ---- | 53 | 3.0 |
| 8 | MO44/110-28/K3 | 35 | 120 | 415 | 180 | 0.54 | 2800 | ---- | ---- | 53 | 3.0 |
| 9 | MO23/110-14/K4 | 45 | 120 | 230 | 200 | 0.90 | 1400 | 6.00 | ---- | 50 | 3.5 |
| 10 | MO44/110-14/K4 | 45 | 120 | 415 | 200 | 0.55 | 1400 | ---- | ---- | 50 | 3.5 |
| 11 | MO23/110-28/K4 | 45 | 120 | 230 | 250 | 1.10 | 2800 | 6.00 | ---- | 53 | 3.5 |
| 12 | MO44/110-28/K4 | 45 | 120 | 415 | 260 | 0.65 | 2800 | ---- | ---- | 53 | 3.5 |
